Are you considering radiant floor heating for your home? Choosing the right size PEX tubing can make all the difference in how efficiently your system runs. With so many options out there, it’s easy to feel overwhelmed.
Imagine stepping onto a warm floor on a chilly morning. That comfort starts with the right PEX size. This article will guide you through the factors to consider and help you select the ideal size for your radiant heat system. By the end, you’ll be equipped with the knowledge to make an informed decision and enjoy the cozy warmth you desire.
Key Takeaways
- Choose the Right PEX Size: Selecting the appropriate PEX size (ranging from 1/4 inch to 1 inch) is crucial for efficient radiant floor heating based on project size and heat output needs.
- Factor in Floor Type: Different flooring materials affect PEX sizing; tile and stone may require larger diameters (1/2 inch), while carpet typically uses smaller sizes (1/4 to 3/8 inch).
- Understand Heat Output Requirements: Calculate your room’s heat demands to choose the correct PEX size—smaller sizes for low heat needs (1/4 to 3/8 inch) and larger for high demands (1/2 inch).
- Consider Installation Tips: Proper spacing of 12 to 18 inches between loops and using reliable connection techniques can enhance system performance and minimize leaks.
- Durability and Flexibility: PEX offers reliability with its resistance to corrosion and thermal expansion, making it a long-lasting choice for radiant heating systems.
- Compliance with Local Codes: Always check local building codes to ensure your PEX installation meets safety and quality standards.
Overview of PEX in Radiant Floor Heating
PEX, or cross-linked polyethylene, is a popular choice for radiant floor heating systems. Its flexibility and resistance to scale and chlorine make it ideal for this application. When you choose PEX, you ensure efficient heat distribution across your floor.
Benefits of PEX
- Flexibility: PEX easily bends around corners and obstacles. This flexibility simplifies the installation process and minimizes the number of fittings required.
- Durability: PEX resists corrosion and scale buildup, enhancing its longevity. You’ll rarely need to replace it.
- Thermal Expansion: PEX can expand and contract with temperature changes without breaking. This characteristic helps maintain system integrity.
Choosing the Right Size
Sizing PEX for radiant floor heating depends on various factors:
- Project Size: Larger areas typically require larger diameter PEX to ensure adequate flow rates. For instance, a room of 1,000 square feet might use 6 to 8 loops of 1/2-inch PEX.
- Heat Output: Consider the BTU requirements of your space. Proper size ensures optimal heat transfer. Generally, PEX sizes of 3/8-inch to 1-inch are available for installations.
- Flow Rate: A larger diameter PEX allows more water flow, resulting in quicker heat delivery. 1/2-inch PEX suits many applications, but larger systems benefit from 3/4-inch for enhanced performance.
Common Applications
- Residential Heating: Most homeowners use PEX for heated flooring in new constructions or remodels. It provides comfort throughout the home.
- Commercial Installations: PEX fits well in businesses needing efficient heating systems, including warehouses and retail spaces.
Installation Tips
- Gather Tools: You’ll need a PEX cutter, crimp rings, and a crimp tool. Having the right tools makes the installation smoother.
- Plan Loops: Strategically layout where PEX will run. A well-planned design optimizes heat distribution.
- Check Local Codes: Review local building codes regarding PEX installations. Compliance ensures safety and quality.
- Can PEX be used with all heating systems?
Yes, PEX works well with various heating sources, including boilers and heat pumps. - How long does PEX last?
With proper installation and maintenance, PEX can last 25 years or more.
Choosing the correct size and understanding how PEX functions in radiant floor heating systems leads to efficient and comfortable living spaces.
Factors Affecting PEX Size
Selecting the right PEX size for radiant floor heating involves various considerations. Understanding these factors helps ensure an efficient heating system.
Floor Type Considerations
Consider the type of flooring when choosing PEX size. Different flooring materials have varying conductivity levels.
- Tile Floors: Typically require larger diameter PEX, ranging from 3/8 inch to 1/2 inch. Tile conducts heat well, allowing for efficient warming.
- Carpet Floors: Use smaller diameter PEX, often 1/4 inch to 3/8 inch. Carpet insulates, requiring less heat output to maintain comfort.
- Wood Floors: Demand medium-sized PEX, commonly between 3/8 inch and 1/2 inch. Wood has decent conductivity but may need additional consideration for insulation beneath.
These examples highlight how your floor type directly impacts your PEX choice.
Heat Output Requirements
Heat output requirements also significantly influence PEX size selection. Calculate the system’s needs based on room dimensions and insulation conditions.
- Low Heat Demand: For spaces like bathrooms or small rooms, PEX sizes of 1/4 inch to 3/8 inch suffice. Lower heating needs call for smaller diameters.
- Standard Heat Demand: In main living areas, opt for 3/8 inch PEX. This size balances efficiency and heat distribution for average rooms.
- High Heat Demand: In open areas with high ceilings or poor insulation, 1/2 inch PEX is ideal. Larger diameters ensure adequate heat output.
By assessing your specific heat output needs, you can choose the optimal PEX size for effective heating.
Recommended PEX Sizes for Different Systems
Choosing the right PEX size for your radiant floor heating system ensures optimal performance. Here’s a guide for residential and commercial setups.
Residential Systems
For residential spaces, PEX sizes depend on the type of flooring and heat requirements.
- Tile and Stone Floors: Use 1/2 inch PEX. This size ensures adequate heat output and quick warming of the cold surfaces.
- Wood Floors: Opt for 3/8 inch PEX. It balances heat distribution while considering the flooring’s response to heat.
- Carpeted Areas: Smaller sizes like 1/4 inch or 3/8 inch PEX are suitable. These diameters provide comfort without excessive heat loss.
Make sure to consider the room’s dimensions and the heat demand. Larger rooms or those with high ceilings may require additional loops of PEX or larger diameters to maintain comfort.
Commercial Systems
Commercial systems often face higher demands and larger spaces.
- Heavy Traffic Areas: Use 1/2 inch PEX for consistent heat output. This size accommodates more significant heat requirements.
- Warehouses and Large Open Spaces: Consider 3/4 inch PEX. Larger diameters enable better flow rates for expansive areas.
- Office Spaces: A mix of 3/8 inch and 1/2 inch PEX can be effective. This combination addresses differing needs within various rooms.
When designing commercial systems, always assess both hot water source and the entire layout of the heating loops. Doing so helps ensure the chosen PEX size meets the specific heat output and efficiency needed for the application.
Installation Tips for PEX in Radiant Heating
Use these tips to ensure a successful PEX installation for your radiant heating system.
Proper Spacing and Layout

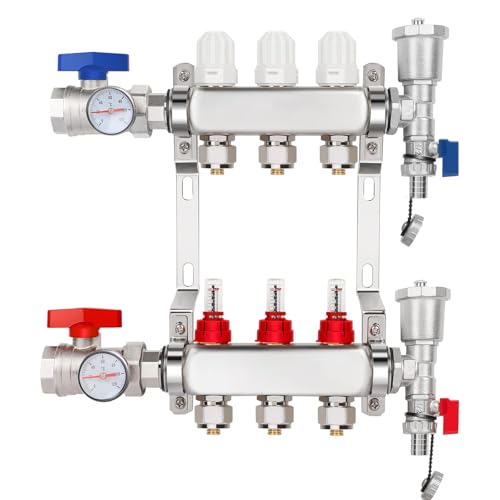

Maintain consistent spacing between PEX tubing loops. Aim for 12 inches to 18 inches apart, depending on the flooring type and heat output requirements. For example, if you’re using tile, closer spacing enhances heat transfer. Consider a loop layout that minimizes the length of tubing while evenly distributing heat. Use a manifold system to connect multiple loops efficiently, ensuring each space receives adequate warmth.
Connection Techniques
Employ reliable connection methods to ensure a leak-free installation. Use crimp or clamp fittings for PEX connections, as these methods create tight seals. For instance, when connecting 1/2 inch PEX to a manifold, follow the manufacturer’s instructions closely. Keep connections accessible for future maintenance. Always verify that the pressure testing system holds steady; this indicates a successful installation without leaks.
Conclusion
Choosing the right size PEX tubing for your radiant floor heating system is key to achieving optimal comfort and efficiency. By considering factors like flooring type and heat output needs you can make informed decisions that suit your space perfectly. Remember that PEX offers flexibility and durability which makes it a fantastic choice for any heating project.
With the right installation techniques and proper spacing you’ll set yourself up for success and enjoy the benefits of warm floors for years to come. So take your time in selecting the right size and enjoy the cozy comfort that radiant heating brings to your home.
Frequently Asked Questions
What is PEX tubing and why is it used in radiant floor heating?
PEX tubing is a flexible, durable plastic pipe commonly used in plumbing and heating systems. It’s ideal for radiant floor heating due to its ability to expand and contract with temperature changes, making it efficient and reliable for distributing heat evenly across the floor.
How do I choose the right size PEX tubing for my radiant heating system?
Choosing the right size PEX tubing depends on several factors, including the type of flooring, heat output requirements, and room dimensions. Larger diameters are generally needed for high heat demand areas and specific flooring types like tile, while smaller diameters can work for carpeted spaces.
What PEX sizes are recommended for residential radiant heating?
For residential systems, it’s recommended to use 1/2 inch PEX for tile and stone floors, 3/8 inch for wood floors, and 1/4 inch or 3/8 inch for carpeted areas. These sizes help achieve optimal heat distribution for different flooring materials.
What PEX sizes are suitable for commercial radiant heating applications?
In commercial settings, 1/2 inch PEX is advisable for heavy traffic areas, while 3/4 inch is suitable for large spaces like warehouses. Office environments can utilize a mix of 3/8 inch and 1/2 inch PEX, depending on the specific heating needs.
How important is the spacing in PEX installation for radiant heating?
Spacing is crucial in PEX installation for effective heat distribution. Tubing should be spaced 12 to 18 inches apart based on the flooring type and heat output requirements to ensure even heating and energy efficiency.
What are the best connection techniques for PEX tubing?
Reliable connection techniques for PEX tubing include crimp and clamp fittings. These methods ensure a leak-free installation, maintaining the integrity of your radiant heating system throughout its lifespan.
How long does PEX tubing typically last in a heating system?
With proper care and installation, PEX tubing can last 25 years or more in heating systems. It’s important to follow guidelines and maintain the system to achieve maximum longevity and efficiency.
What factors affect the selection of PEX size in radiant floor heating?
Factors affecting PEX size selection include the type of flooring materials used, heat output needs, and the dimensions of the rooms being heated. Understanding these elements ensures the selected tubing meets the system’s efficiency requirements.
